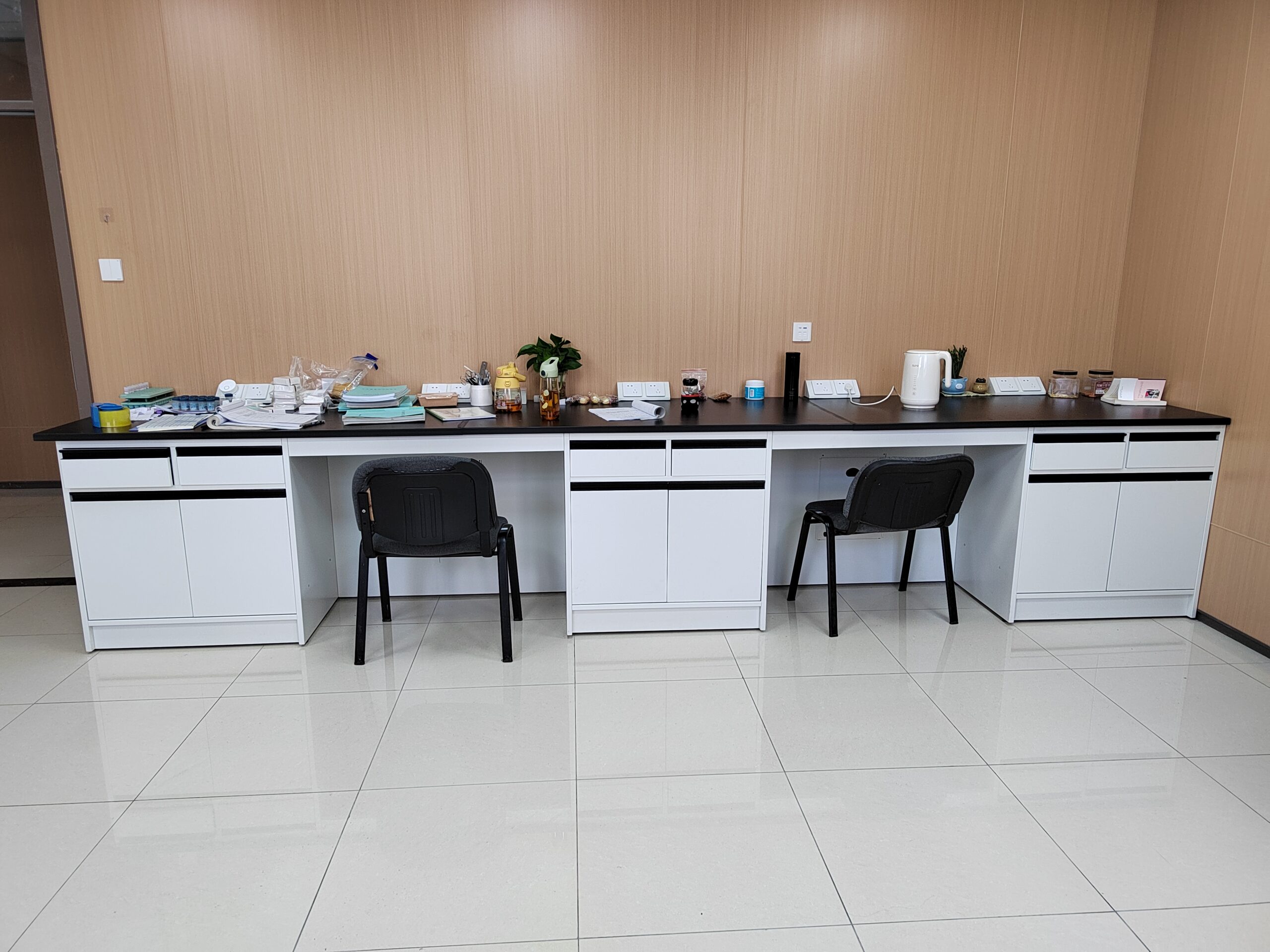

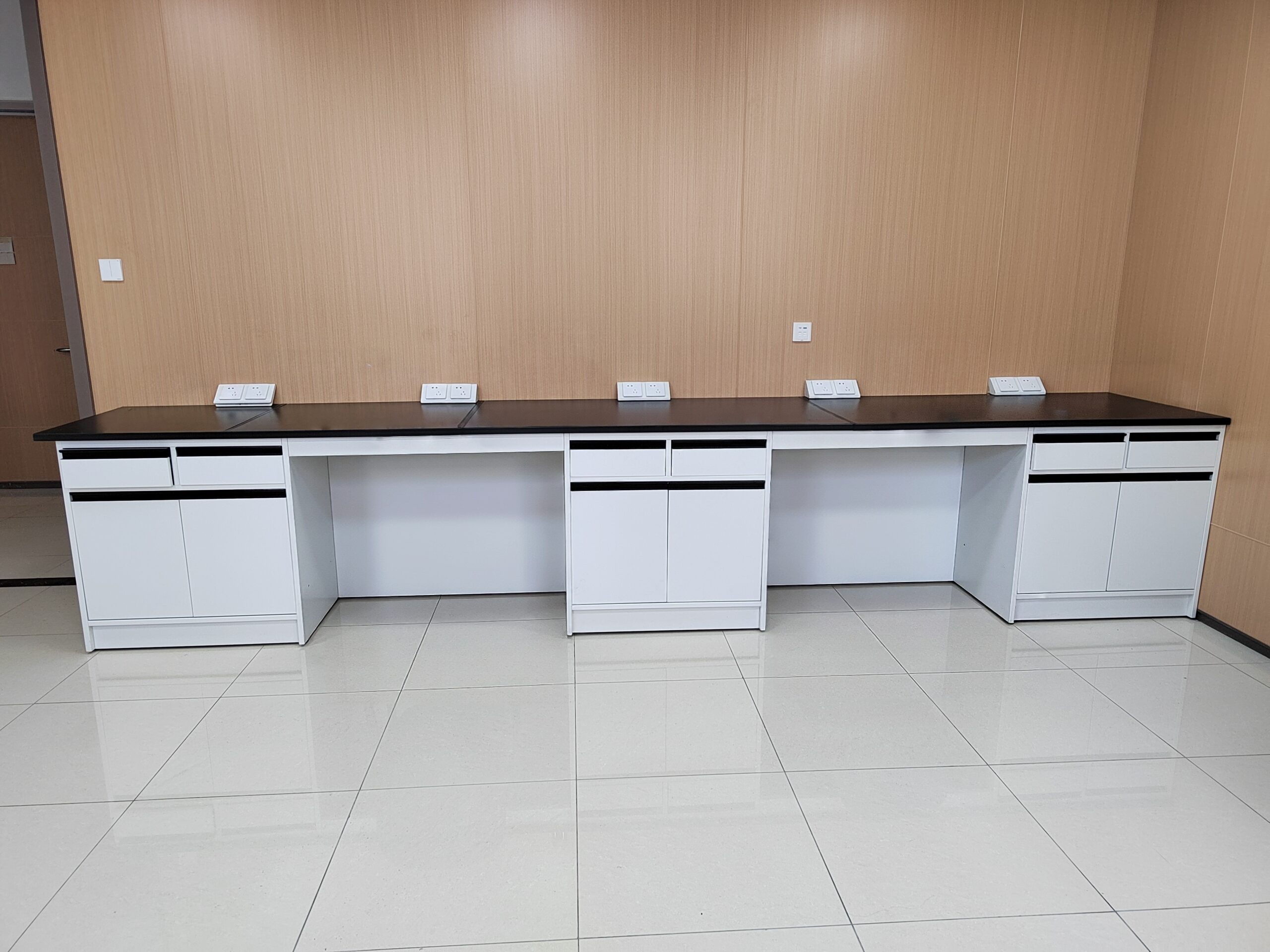

All‑Steel Laboratory Side Bench with Power Sockets

Description

[Legal Transaction Disclaimer] All laboratory equipment in our store, including standard finished products, non-standard customized products, small-batch orders of 1-5 units and bulk orders, are industrial-grade custom-oriented equipment. Under applicable consumer-protection and online-transaction regulations, industrial-grade custom-oriented goods are NOT eligible for no-reason returns or refunds. Once production is confirmed, refunds based on subjective reasons, order cancellation, or 45-day malicious credit-card chargebacks will NOT be honored. Any unjustified refund request or abusive chargeback shall constitute a breach of contract. We reserve the right to deny refunds and pursue breach-of-contract damages. All sales are governed by these published terms and formal sales contracts.

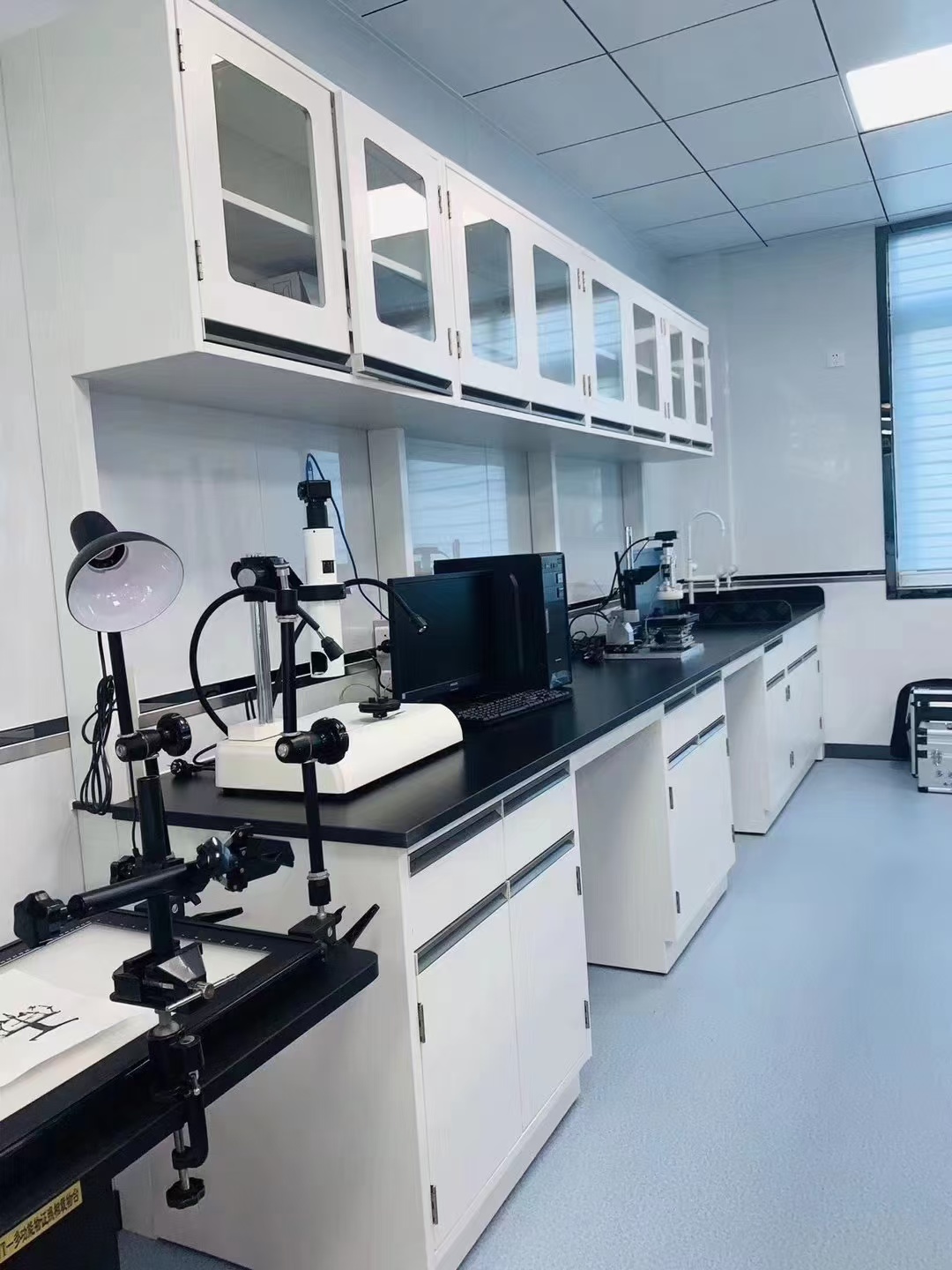

Two configurations available: without overhead cabinet or with overhead cabinet. Please leave your requirements in the inquiry, we will provide customized quotation accordingly.

Quotation and Pricing Instructions

This product supports online ordering and online payment. The price displayed on this page is the standard unit price per linear meter (1-meter) for the all-steel floor-standing laboratory wall bench.

Pricing Standard: Unit price per linear meter for the all-steel laboratory wall bench. The worktop of standard size is equipped with 12.7mm-thick solid physical-chemical board with edge-thickened up to 25.4 mm as standard configuration; five-hole power sockets are standard for the reagent rack.

Standard Dimensions: 1000 mm × 750 mm × 850 mm (Length × Width × Height)

Price-Influencing Factors: Apart from standard sizes, adjustments can be made according to selected dimensions. The final total cost is affected by worktop material, cabinet configuration, optional accessories including reagent racks, service columns and power sockets, total length and other additional supporting components, and can be adjusted according to actual requirements.

Cooperation Process: Apart from standard sizes, we will provide a detailed itemized quotation based on your experimental requirements and accessory selection needs. Production will be arranged after the sales contract is signed and confirmed by both parties.

Worktop
Apart from standard sizes, multiple worktop materials are available for selection according to actual laboratory working conditions, fully meeting different requirements for corrosion resistance, load-bearing capacity and daily operation in various scenarios.

Structural Design
The cabinet adopts an integrated all-steel floor-standing structure with a stable frame, strong load-bearing capacity and high overall rigidity, suitable for long-term and high-frequency laboratory use.

Sheet-Metal Bending Process
The front frame, cabinet doors and drawer panels are processed by high-precision CNC bending. Vertical and horizontal gaps between doors, drawers and frames are controlled within ≤3 mm with uniform and symmetrical clearances for a neat appearance. All outer cross-sections of cabinet doors and drawer panels are fully hemmed to eliminate sharp edges and prevent operator scratches, while removing coating blind spots to fundamentally avoid rust and oxidation.

Welding Process
All bent joints of the front frame, cabinet doors and drawer panels are fully welded. Weld seams are finely polished to a smooth finish for an integrated appearance, eliminating coating dead zones to achieve long-term rust and corrosion resistance.

Surface Coating Treatment
After forming, all metal components go through complete anti-corrosion pretreatment: grinding, polishing, acid degreasing, phosphating and drying. The finished workpiece surface is smooth without pits or burrs.
Epoxy powder electrostatic spraying is completed on an automatic spraying production line, and the manufacturer’s official test report can be provided. The coating thickness ranges from 80-100 μm and is cured at 180 ℃; the overall coating thickness of components is 1.4mm. The surface is acid-alkali resistant, high-temperature resistant and anti-corrosive, free from paint peeling, delamination and discoloration during long-term use.

Drawer Slides
Standard two-section steel roller damping slides for smooth, silent and stable pulling with buffer shock-absorbing effect without jamming.

Cabinet Door Hinges
High-quality anti-rust hinges dedicated for laboratories. The inward-opening door can reach a maximum opening angle of 180°, with flexible opening-closing performance and long service life.

Handles for Cabinet Doors & Drawers
Integrally bent one-piece molded handles without splicing seams deliver solid structure, simple and elegant appearance and convenient cleaning.

Rear-Panel Structure
The cabinet rear panel is a snap-on detachable cover plate that can be disassembled without special tools, facilitating later-stage maintenance of internal water, electrical and gas pipelines.

Door-Closing Mechanism
Fitted with rubber-coated strong magnetic catches or plastic roller magnetic catches for precise closure with anti-collision, noise-reduction and shock-absorption functions.

Anti-Collision and Sound-Insulation Accessories
High-quality rubber anti-collision pads are installed on contact surfaces of drawers and cabinet doors to realize buffered and silent closing. Polyurethane foam sound-insulation boards are filled inside door panels to further reduce operating noise.

Leveling Feet
Built-in M10 hexagon leveling feet are equipped with reserved adjustment holes and dust-proof hole covers. Each foot allows a maximum height adjustment of 50 mm to freely level the cabinet and adapt to various ground conditions.

Lead Time
For all orders of 1-5 units placed according to standard dimensions, the production lead-time is 28-45 working days upon receipt of the confirmed order. For all other orders, an online sales contract shall be signed before formal production arrangement. The total lead-time including production and sea shipping will be approximately 75-90 days, subject to the actual shipping schedule.

Shipping & Packaging
The product is shipped in disassembled knock-down packages. All connecting parts need to be assembled by the customer on-site, delivered in non-fumigated fully-enclosed plywood wooden crates. Transport cost will be quoted separately according to the customer’s delivery address. Import duties, customs clearance fees and local destination charges incurred in the buyer’s country shall be borne by the buyer, and the above-mentioned expenses are not included in the product price and are not part of the shipping cost.
